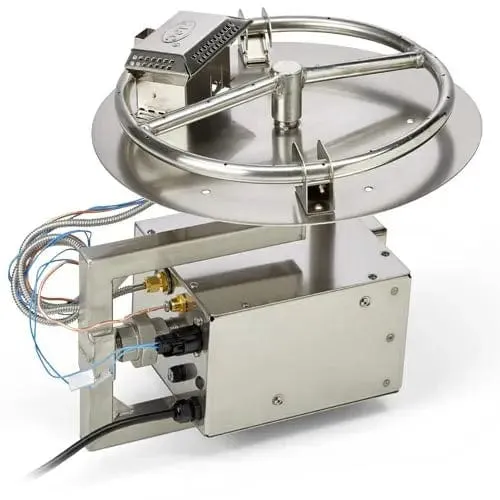

Name: HPC Fire 14" Round Flat Electronic Ignition Fire Pit Insert 14FSSEI
SKU: 345695

14" Round Flat Electronic Ignition HPC Fire Pit Insert 14FSSEI Product Details

The company's foundation was built on a safety pilot valve, millivolt valve, remote control gas fire pit kits/repair parts, and various other components for the hearth industry. We then diversified our thinking by introducing the Outdoor Fire Products line in 2003 with the manufacturing of fire rings. Today, this business segment has grown to include high-end electronic ignition fire pits, push-button ignition fire pits, TK Torches, portable fire pits, copper water bowls, outdoor fireplace accessories, and fire and water features, and a selection of stainless steel components second to none.

HPC Fire Inspired™ also designs custom fire features and their control systems of any shape or size for residential or commercial applications. These range from 2 feet to 30 feet wide, from 50 thousand to 3 million Btu fire features found at large venues throughout the country including casinos, resorts, and restaurants.

An HPC Original – this stainless steel, spun bowl design was launched in 2004… and today is still our most popular pan style.

How It Works:

Start-Up: This is done by the use of a wall switch or remote control. When the ON command is received, the system completes initial safety checks then starts the flow of pilot gas. After 5 seconds the hot surface igniter glows igniting the pilot flame. When the system confirms the pilot flame is present, the main burner gas will flow ignited by the pilot flame.
Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures/voltages, and other safety parameters. If flame loss does occur, the system will turn off all gas flow, and then restart by automatically commencing the Start sequence.
On/Off Models: Includes the convenience and safety features- optional remote control available.
Bluetooth High / Low Flame Control Models: This option includes a smart remote and App via smart device control with 2-way communication with the fire pit. Remote allows flame height control while receiving information from the fire pit to advise the user of fire pit status (flashing LED).
Shut Down: To turn OFF the fire pit simply use a wall switch, remote control, or whole house system.

Purchase the HPC Fire 14 Round Flat Pan Gas Fire Pit 14FSSEI here in Flame Authority!

Features

Features:

Fully Assembled- ready to install. Control components are protected within the valve box.
Start via wall switch or remote control; Auto re-light if the flame is lost.
Ignition is complete using a robust and reliable Hot Surface igniter
On/Off models: Use with optional wall switch, Remote Control, or your whole house system
High/Low Flame Control Models: Adjust high setting to low setting- ~45% turndown (Remote Control included). Not for use with your whole house system.
120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
Natural Gas or Liquid Propane: Factory built & tested for either fuel.
Internal temperature monitoring with overheat auto shutoff

Manual

Manual:

Need assistance? Talk to an Expert at 1-800-923-4556 or email: [email protected] to get the best-suited Fire Pit Burner Kits for your needs.

Specifications

Specifications:

Model:

14FSSEI
14FSSEI-HI/LO

Dimensions: L-14" x W-14"
Max BTU: 90,000
Burner: 12" Round
Gas Type: Natural Gas / Propane
Power: 120VAC / 24VAC
Ignition Style: Electronic Ignition On-Off / Hi-Lo (Bluetooth App)
Required Items: Fire Glass (30 lbs)
Certification: CSA Certified in US & Canada to ANSI Z21.97-2017 / CSA 2.41-2014 requirements. (This new EI system already meets upcoming 2020 ANSI requirements).
Warranty: Lifetime warranty on burners
